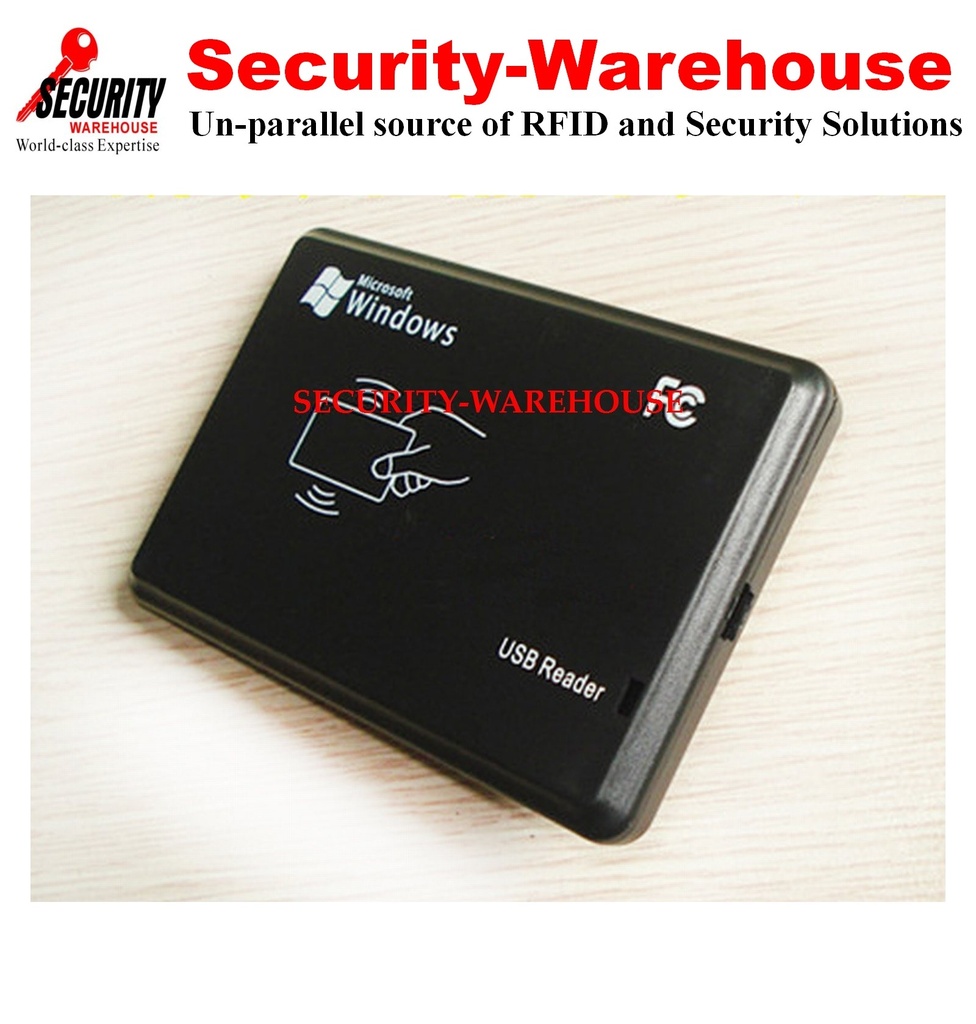

RFID 13.56 Mhz ISO 15693 Desktop Reader Writer USB SDK Plug-n-Play

Description :

• Support ISO15693  (Ti Tag-it,NXP I CODE 2,Ti-2048bit)
• Operation frequency : 13.56Mhz
• Built-in transceiver antenna
• Reading distance 0 to 9cm
• Read and write able
• Less than 35ms decoding time
• USB 2.0 / USB 1.1 interfacee
• power from USB(5V ,<120mA) , No need external power
• Built-in bi-color LED and buzzer
• size : (105 ×80× 23)mm
• OS : Windows 98,WindowsMe,Windows2000,WindowsXP , Windows2003,Windows 7

Package:

•  1x RFID 13.56Mhz ISO15693 Reader USB

Usage:

• This reader is plug and play.
• Upon connecting USB, reader self-check with beep and GREEN/YELLOW led ON. Upon boot, the RED led is kept ON.
• There is no response when card is put on the reader.
• To read/write card, it requires using bundled software, please download from below.
• Select suitable COM and protocol, press "OPEN"
• Within SDK, there are samples codes and library for further development.
