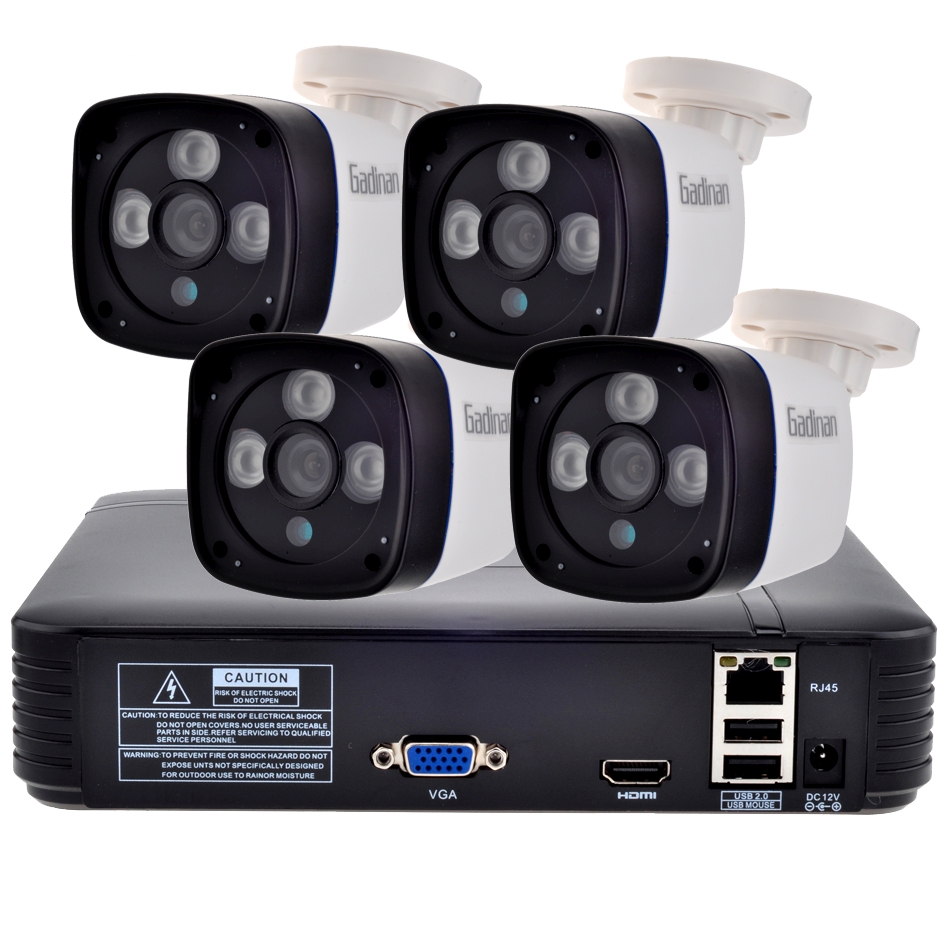

CCTV Network NVR System 4CH FULL HD 1080P NVR And 4PCS 720P Megapixel Outdoor IP Camera Smart Home Kit Security ONVIF
CCTV Network NVR System 4CH FULL HD 1080P NVR And 4PCS 720P Megapixel Outdoor IP Camera Smart Home Kit Security ONVIF
Remarks:

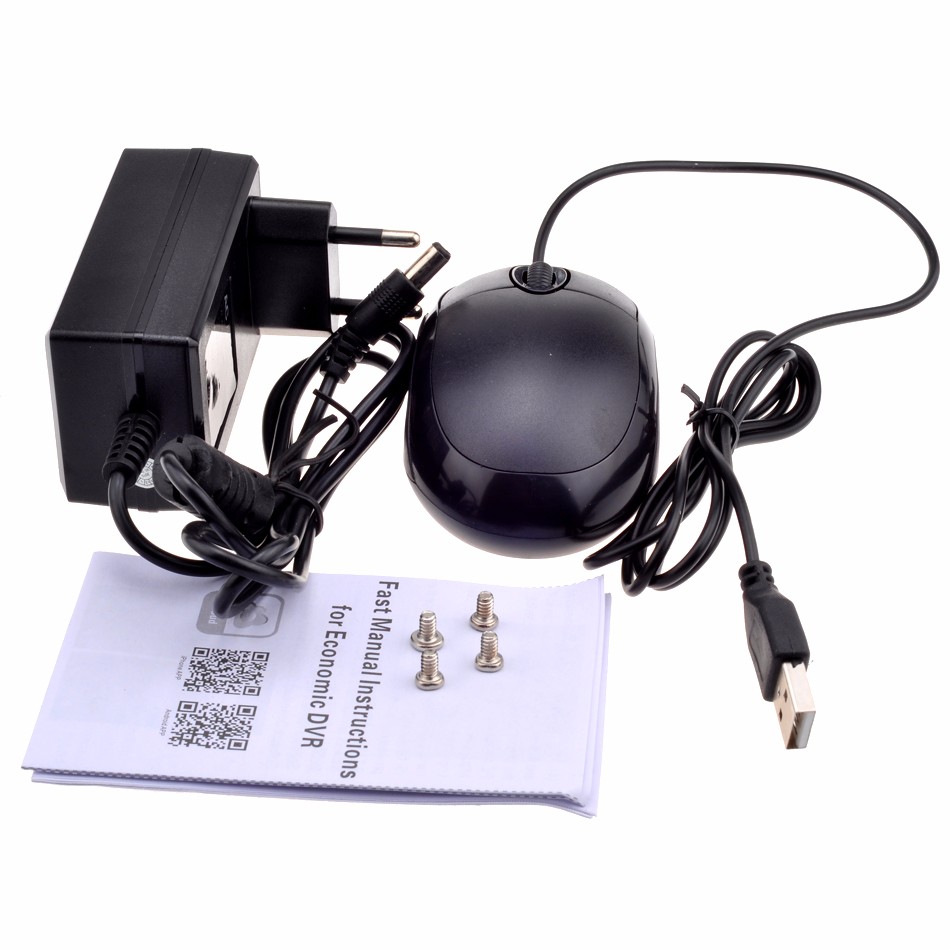

"no power and cable" mean: without 12V power adapter and RJ45 cable for camera
"add power and cable" mean: with 4pcs 12V 1A power adapter(EU/AU/US/UK) and 4pcs 15M RJ45 cable for camera

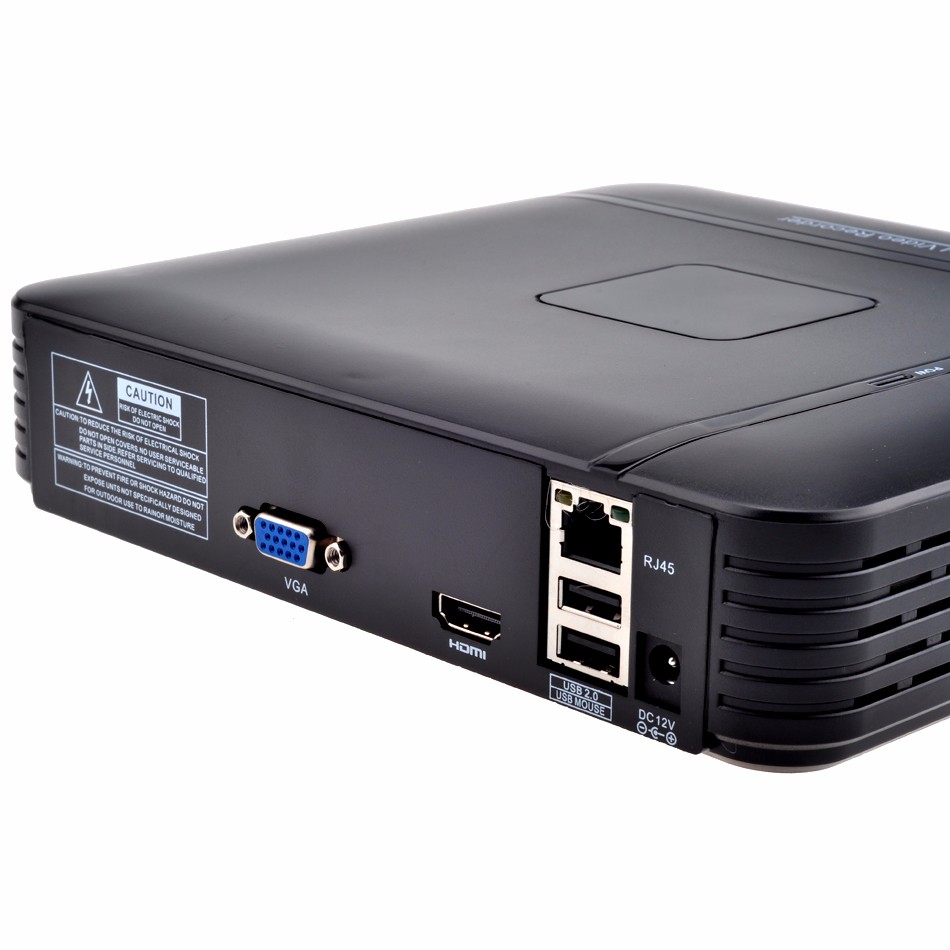

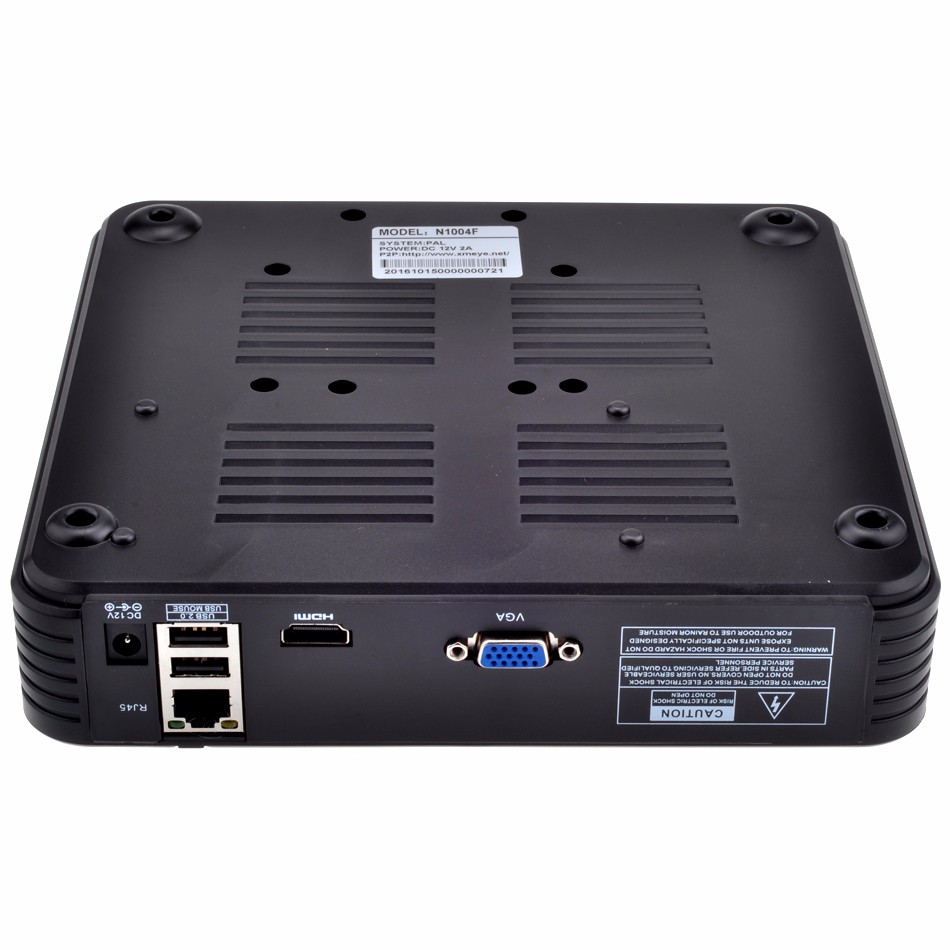

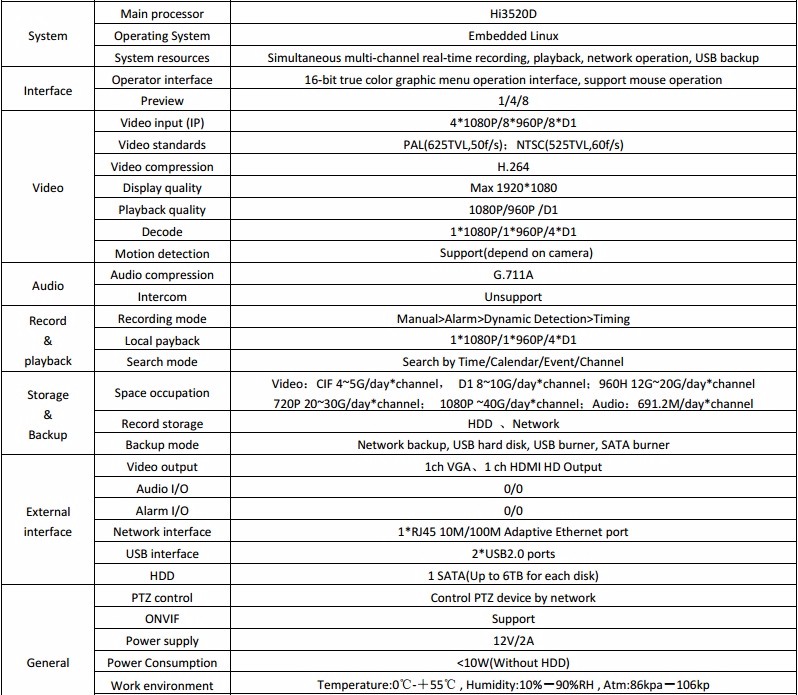

NVR Feature：
1,Support VGA HD output;
2,Support ONVIF;access third party;

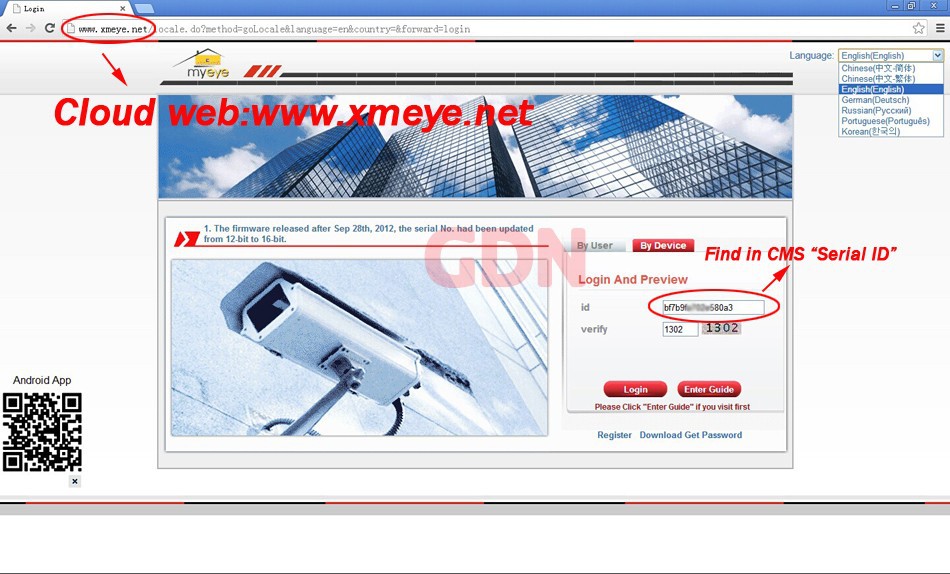

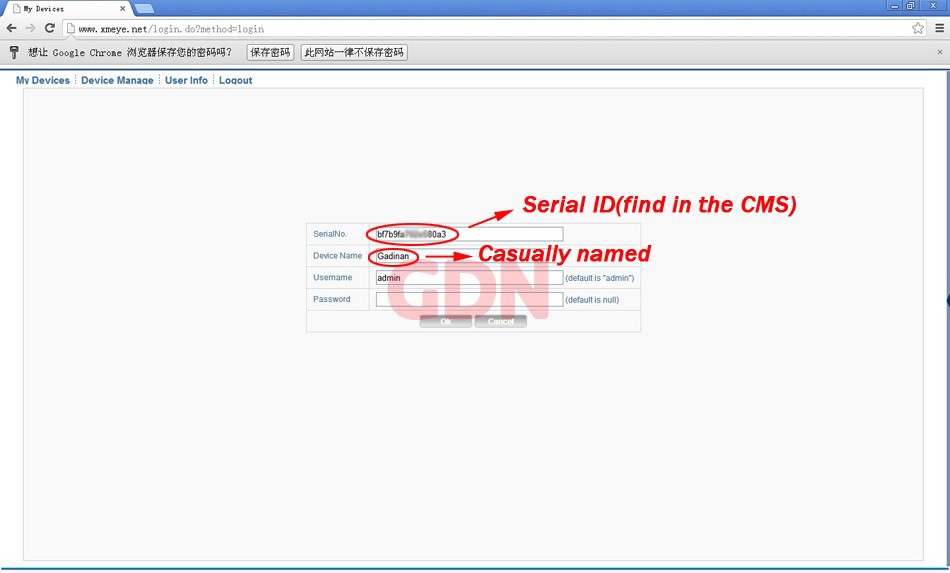

3,Support multiple cloud technology, network penetration, alarm
information pushed to your phone and other functions;

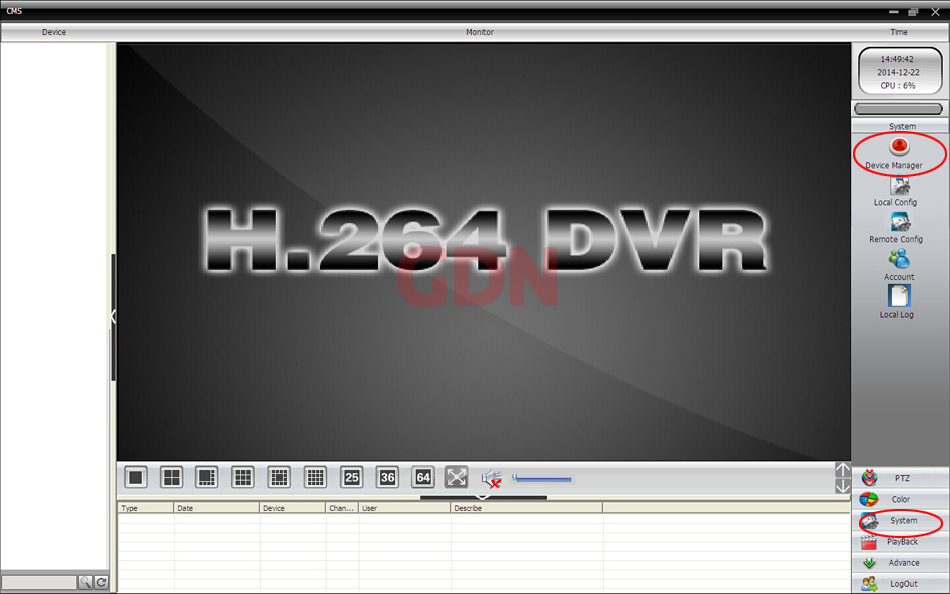

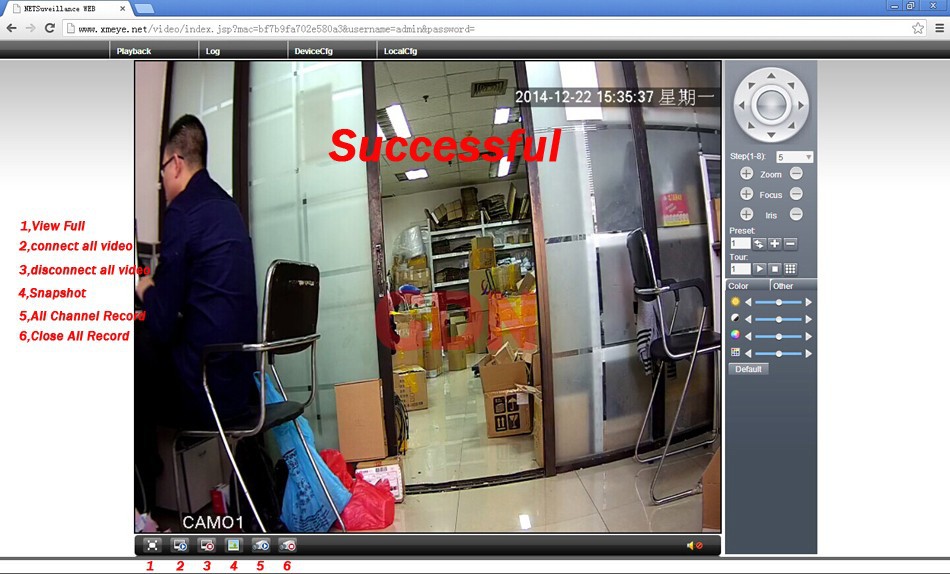

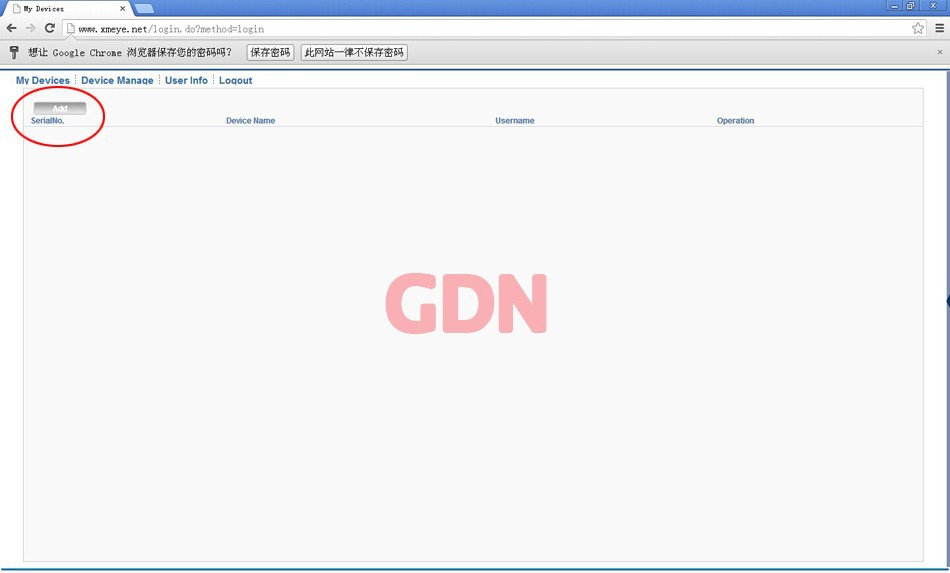

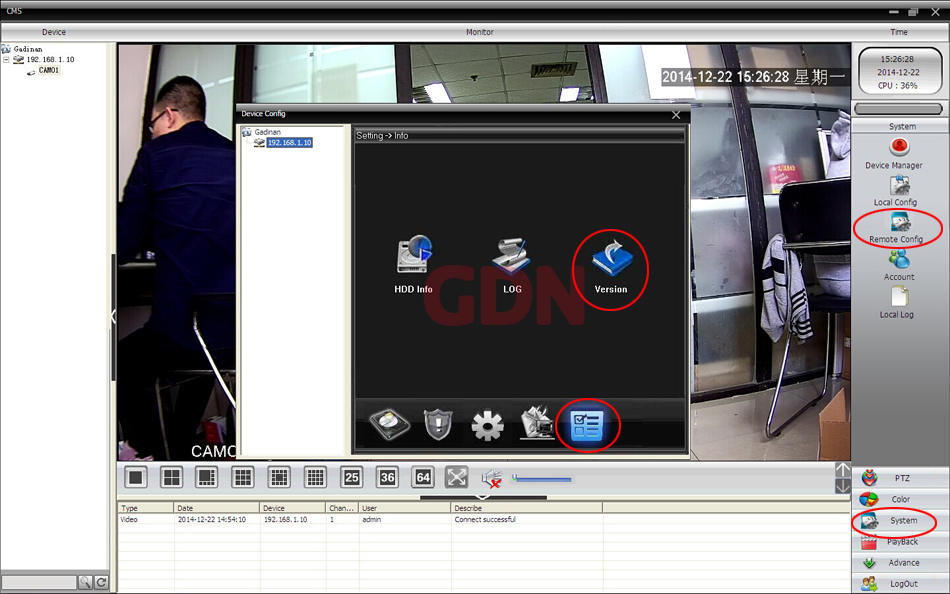

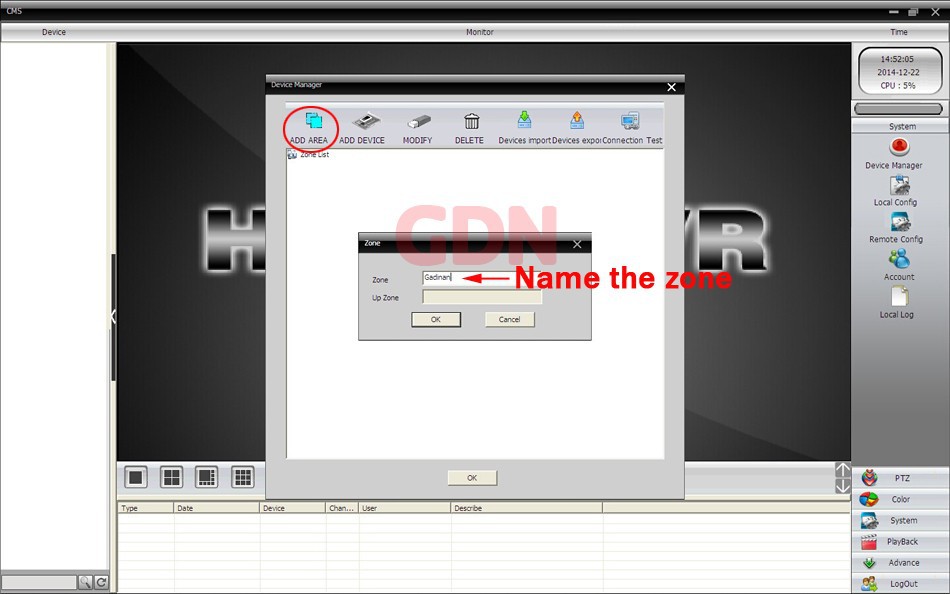

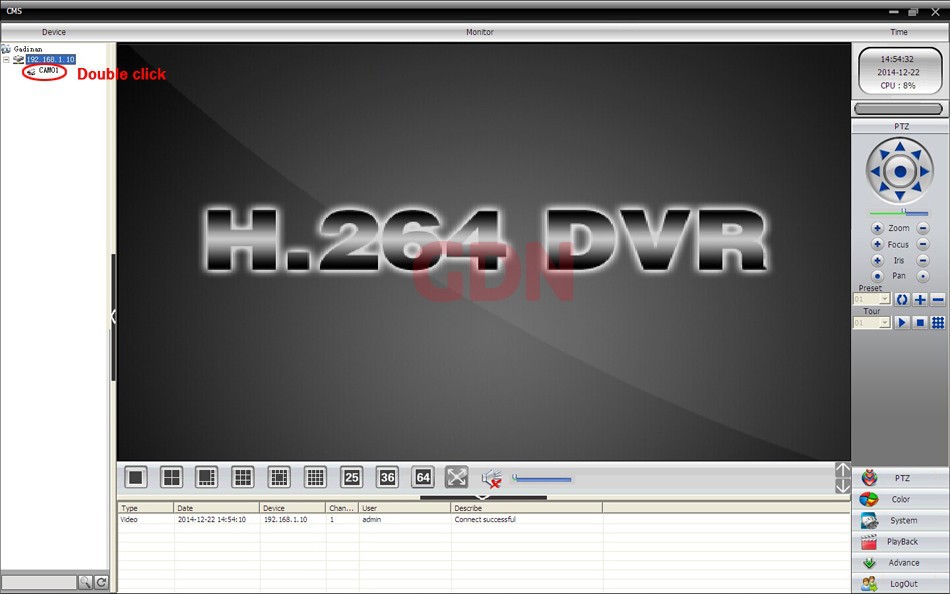

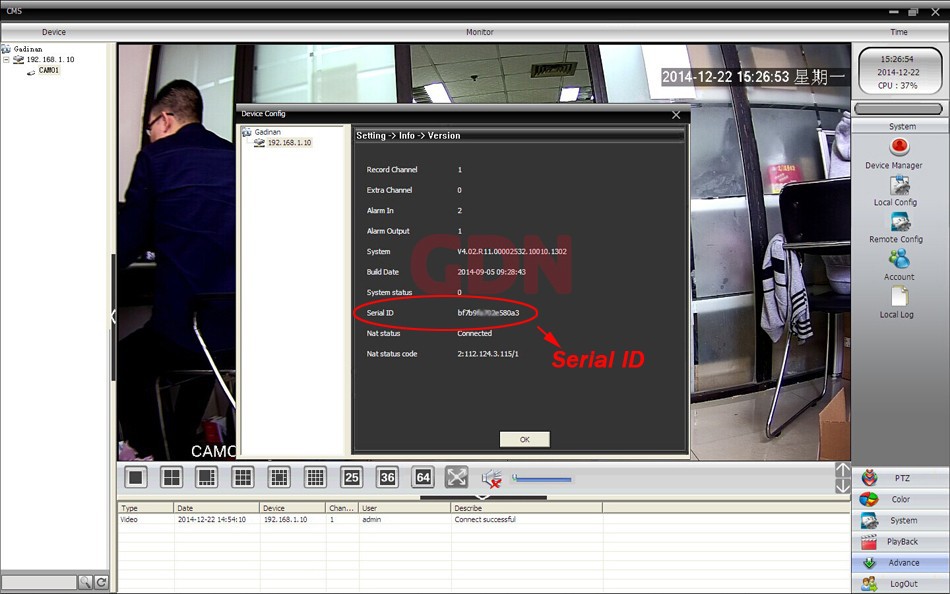

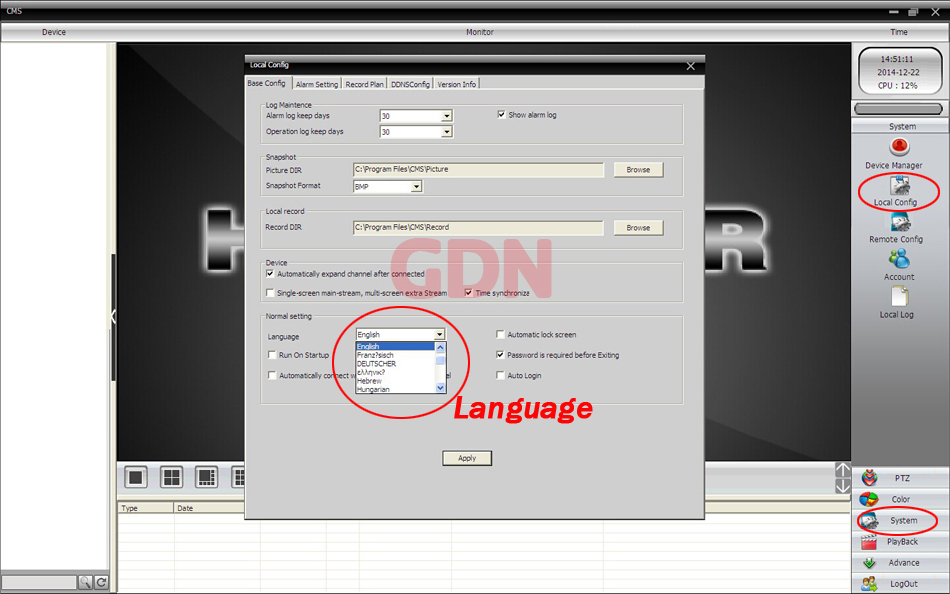

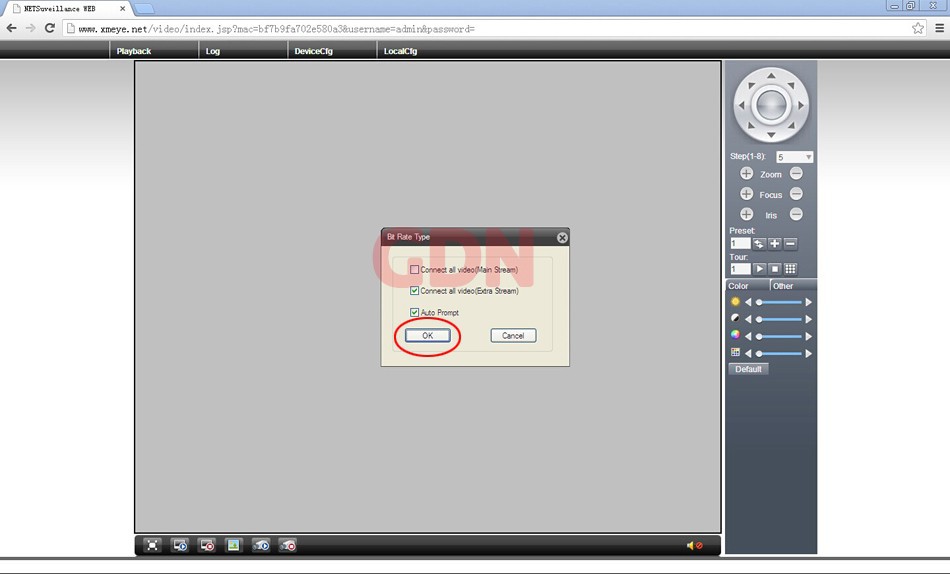

4,Support web, CMS, center platform management software MYEYE,
provide SDK development;
5,Support multiple network services (support DHCP, FTP, DNS, DDNS, NTP,
UPNP, EMAIL, IP searches, Alarm Center, etc.);
Specifications:

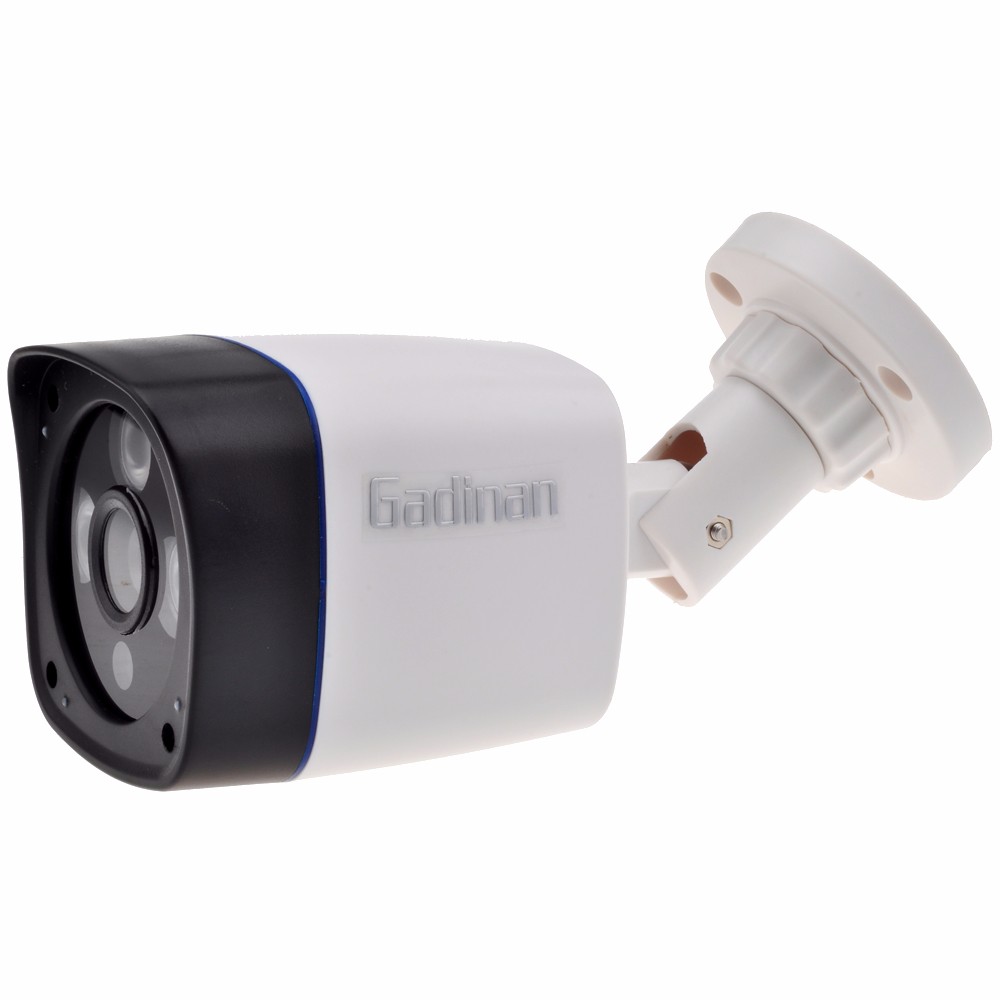

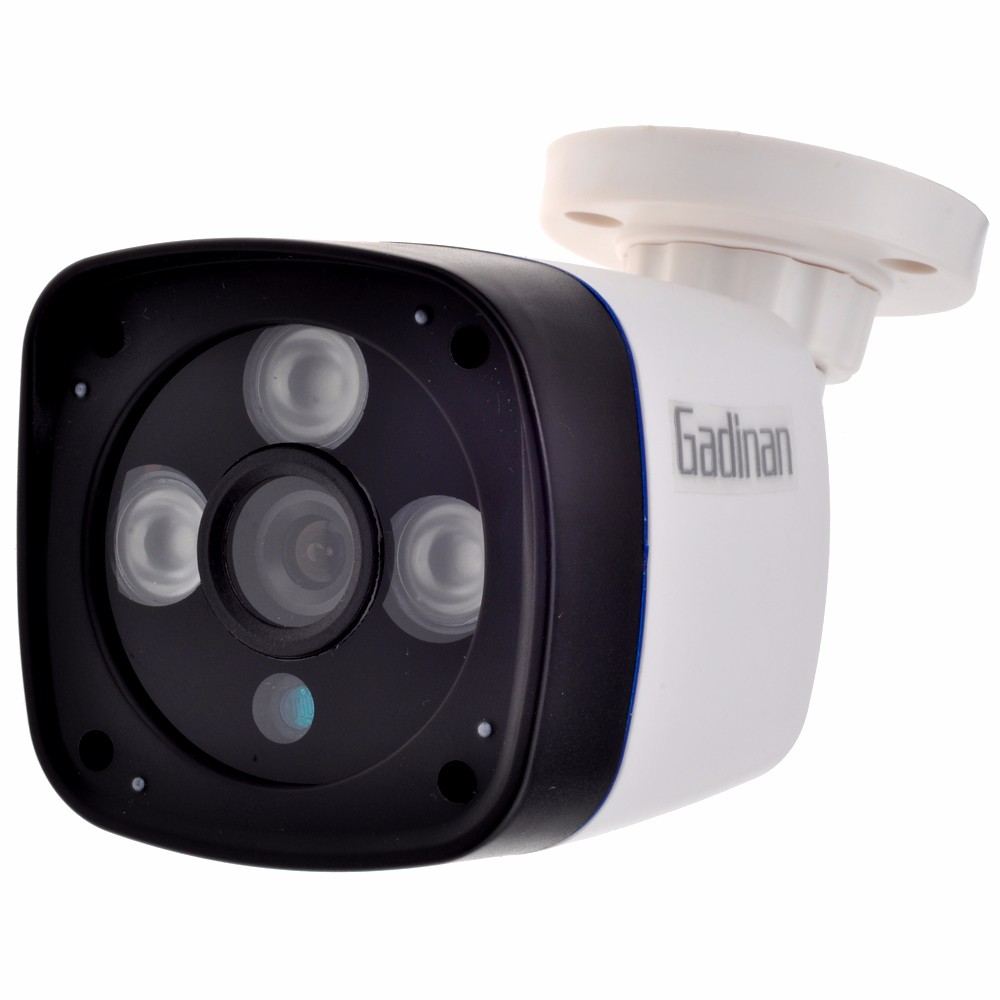

Camera Specifications:
1) Dual stream encoding(H.264/MJPEG)
2) Double core 32bit DSP(XM510)
3) 1/4inch 1.0MP CMOS sensor, color:0.1lux/F1.2, b/w:0.01lux/F1.2
4) With IR-CUT
5) 25fps(Full real time)
6) 3.6mm lens
7) Multi-screen software and CMS
8) Image processing: auto exposure(AE), auto white balance(AWB), auto gain control(AGC)
9) Support motion detection, ONVIF 2.0
10) ABS plastic
11) Support visit by smart phone
|
Model |
720P |
|
System structure |
Embedded RTOS,dual-core 32bit DSP( XM510 ),pure hard compression ,watch dog |
|
Sensor |
1.0M 1/4" H42 CMOS sensor ,color 0.1Lux’F1.2,black/white 0.01Lux’F1.2 |
|
Video compression |
H.264,support dual stream,AVI;0.1M~6Mpbs variable;1~30f/s variable |
|
Image output |
Main stream: 1280*720, 704*576;sub-stream: 704*576; |
|
Noise reduction |
Support 2D/3D |
|
lens |
3.6mm |
|
Storage |
Via PC/Mobile Phone/NVR With HDD |
|

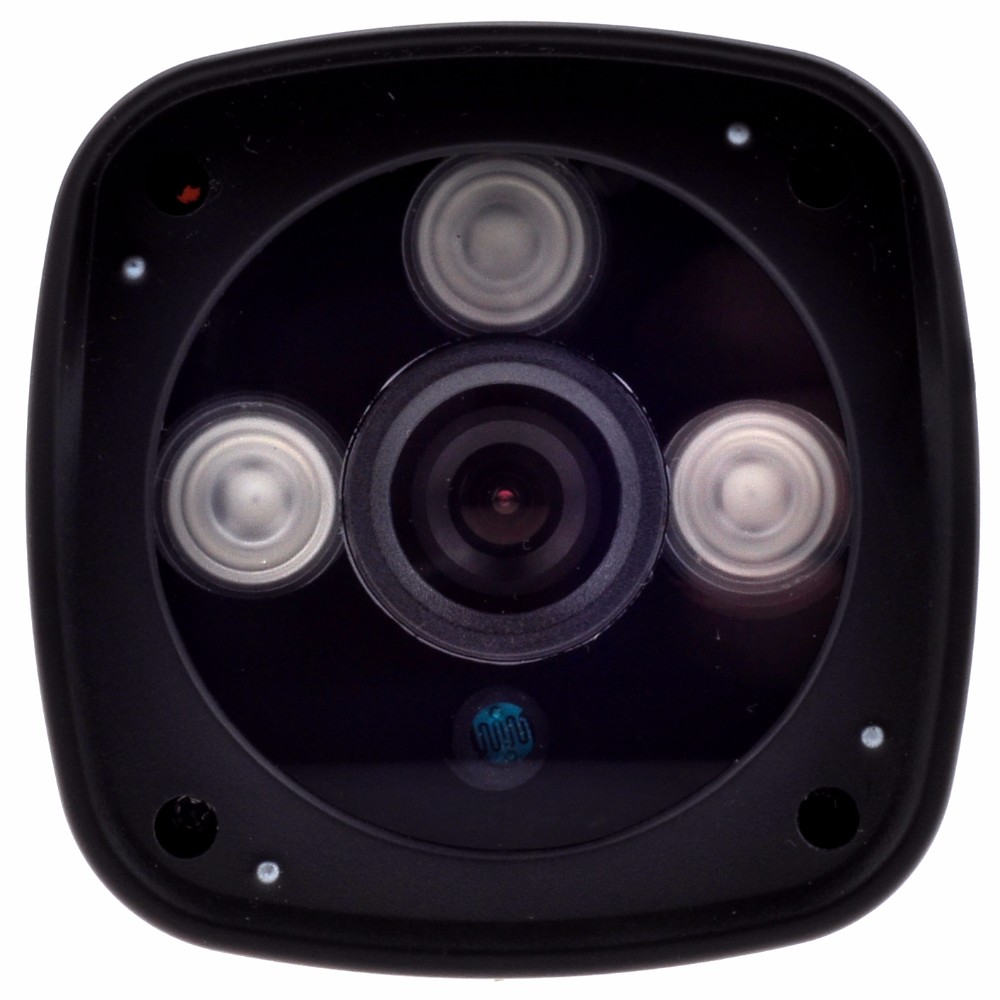

Infrared light |
3pcs array IR leds |
|
Wide dynamic |
Support digital |
|
Network interface |
1*RJ45 10/100M adaptive Ethernet port;support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP etc |
|
Singal interface |
One photo resistance interface,one IR-CUT interface ,support photo resistance signal and IR-CUT links to IR |
|
Auto iris |
No |
|
SD Card |
Unsupport |
|
Reliability |
Comprehensive lightning protection, in line with national and international standards; 7 * 24 hours 65’C high temperature stable and reliable testing (including mounted machine testing) |
|
Other function |
Outdoor waterproof |
|
ONVIF |
Support |
|

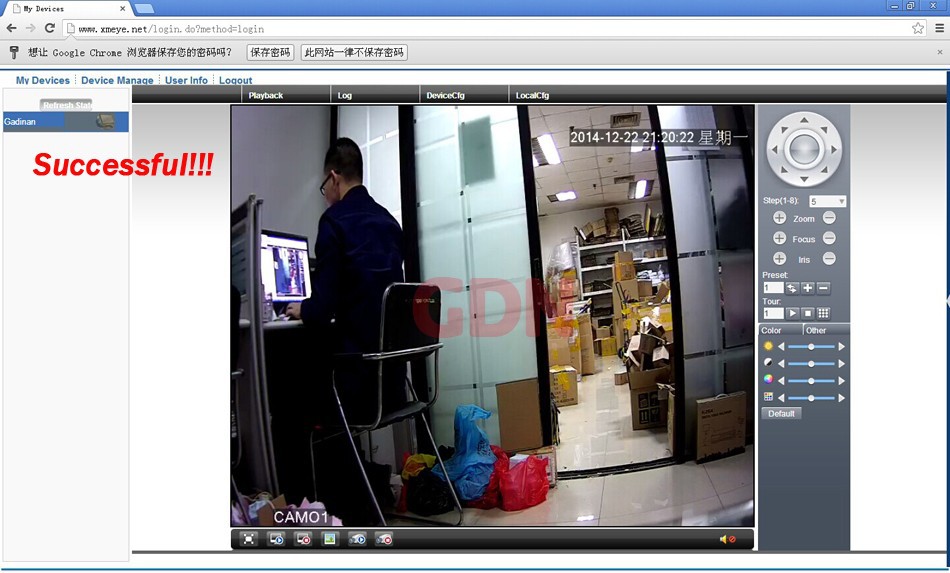

Mobile monitoring |
Support multiple mobile monitoring(iOS,Android) |
|
Power |
DC12V/2A input, power consumption:≤3W |
|

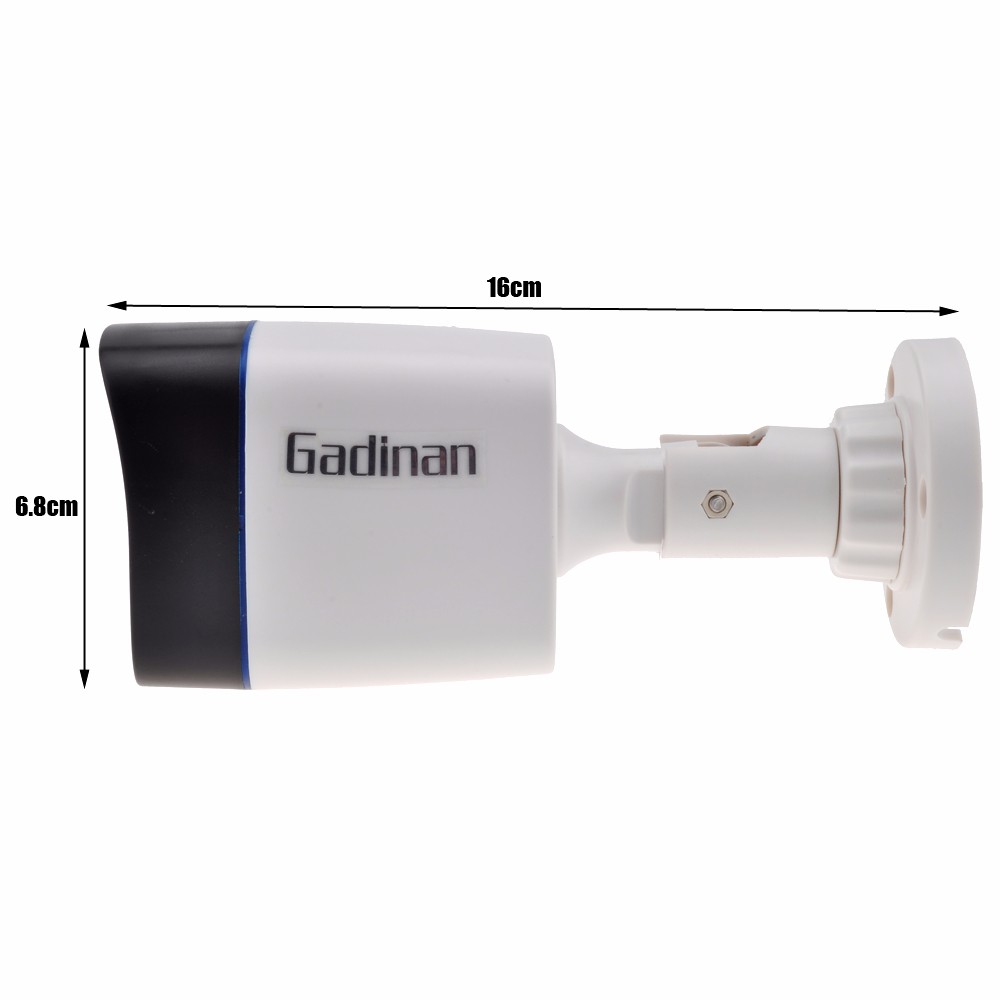

Dimension |
16*6.8cm |
|
Housing material |
ABS Plastic |
Optional:

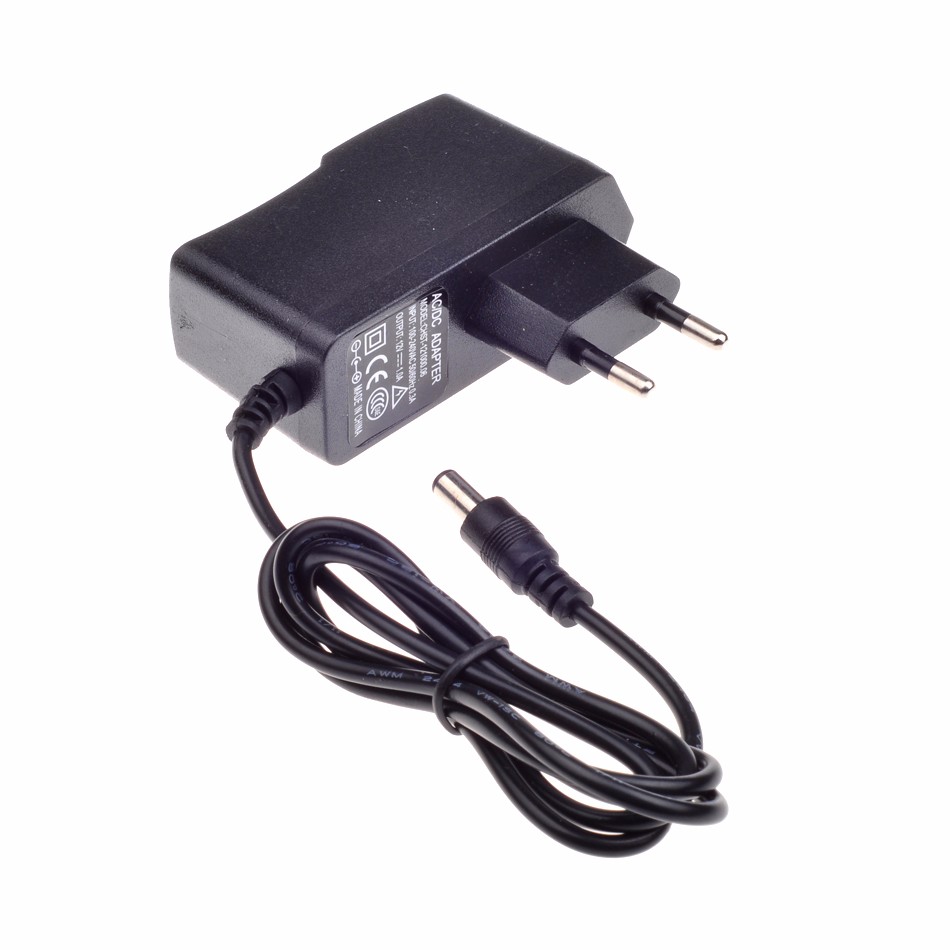

4 x 12V 1A power adapter for camera
