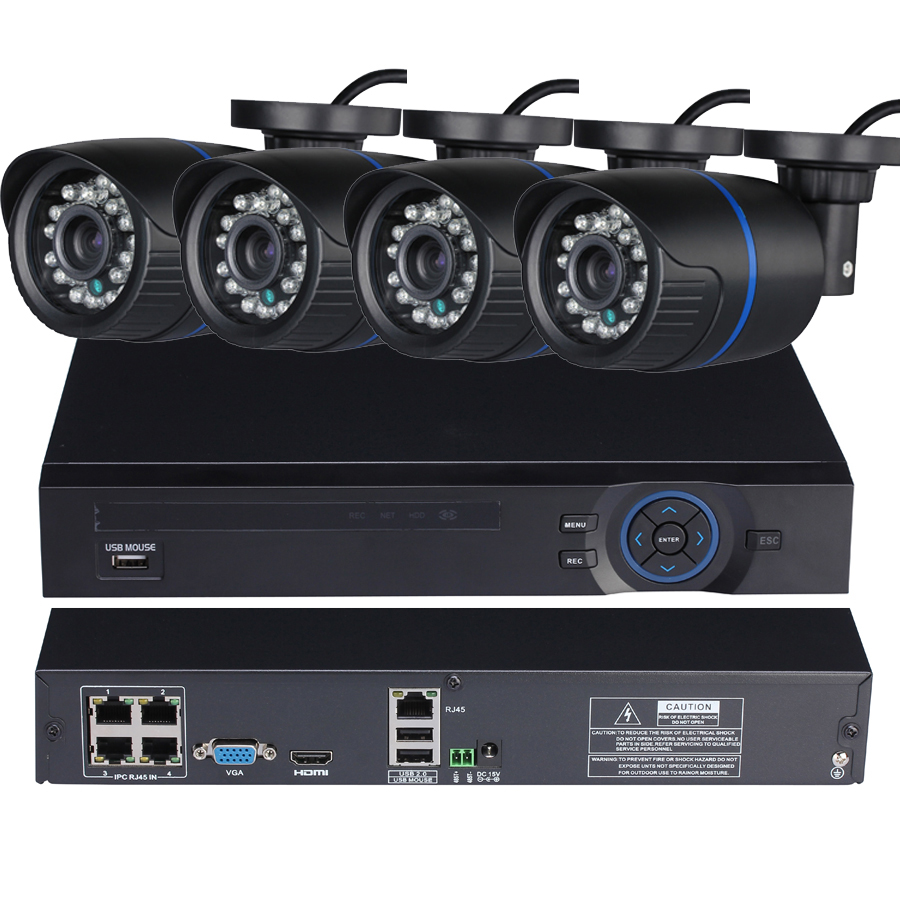

4CH Full-HD 1080P 15V POE NVR 4pcs 720P 960P 1080P Bullte 12V POE Camera POE NVR Kit Home Security IP Camera System

Model

1MP

1.3MP

2MP

System structure

Embedded RTOS,dual-core 32bit DSP( Hi3518E),pure hard compression ,watch dog

Sensor

1/4" OV9712CMOS ,color 0.1Lux'F1.2,black/white 0.01Lux'F1.2

1/3"SC1135 CMOS sensor ,color 0.1Lux'F1.2,black/white 0.01Lux'F1.2

1/2.7" SC2035 CMOS sensor ,color 0.1Lux'F1.2,black/white 0.01Lux'F1.2

Video compression

H.264,support dual stream,AVI;0.1M~6Mpbs variable;1~30f/s variable

Image output

Main stream:

1280*720, 704*576;sub-stream: 704*576;

Main stream:

1280*960,1280*720;sub-stream: 704*576;

Main stream:1920*1080,1280*720

sub-stream: 704*576;

Noise reduction

Support 2D/3D

lens

3.6mm/6mm optional

Storage

Via PC/Mobile Phone/NVR With HDD

Infrared light

24pcs IR leds

Wide dynamic

Support digital

Network interface

1*RJ45 10/100M adaptive Ethernet port;support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP etc

Singal interface

One photo resistance interface,one IR-CUT interface ,support photo resistance signal and IR-CUT links to IR

Auto iris

No

SD Card

Unsupport

Reliability

Comprehensive lightning protection, in line with national and international standards; 7 * 24 hours 65’C  high temperature stable and reliable testing (including mounted machine testing)

Other function

live video transmission,motion detect and IO alarm,playback/download, and center

reminder and image linkage,support JPEG capture；united remote client monitoring sofaware、MYEYE;perfect SDK;

ONVIF

Support

Mobile monitoring

Support multiple mobile monitoring(iOS,Android)

Supply

POE 12V

Dimension

17.8*5.5cm

Housing material

ABS Plastic
