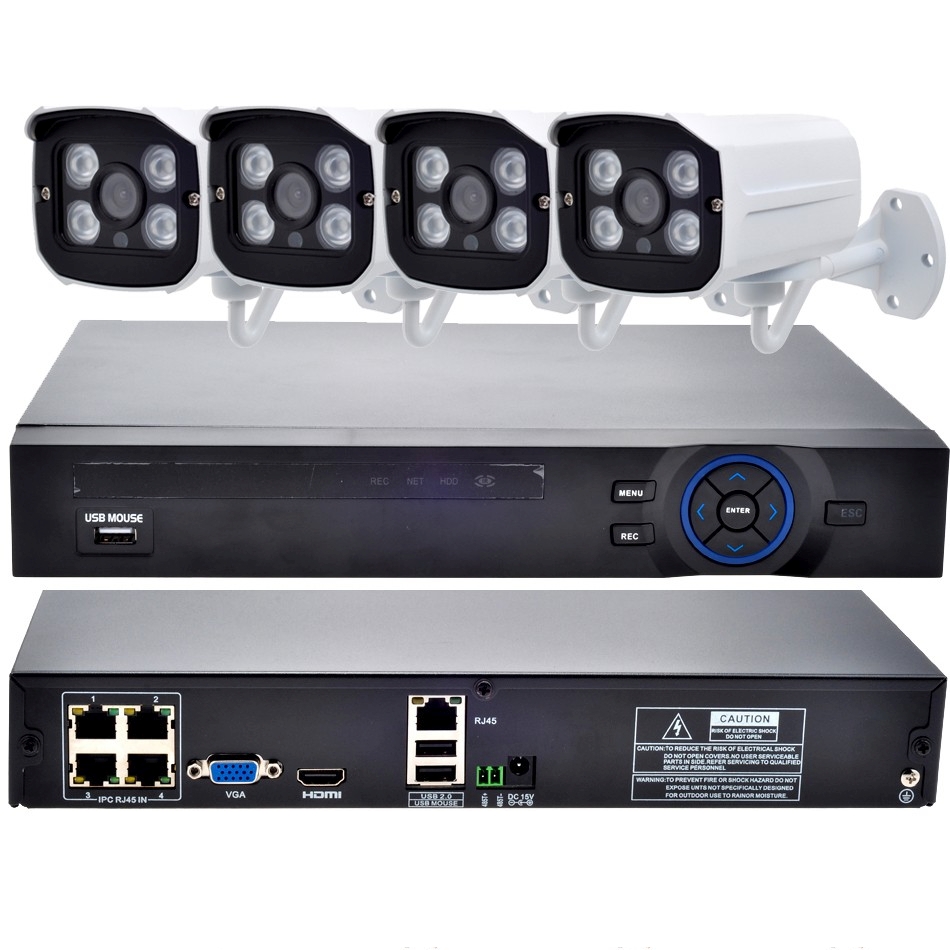

POE 2MP Network Surveillance Camera System Kit 4CH 1080P Full HD 15V POE NVR 4Pcs 2MP HD IP Cameras Outdoor ONVIF Set
POE 2MP Network Surveillance Camera System Kit 4CH 1080P Full HD 15V POE NVR 4Pcs 2MP HD IP Cameras Outdoor ONVIF Set
PoE NVR Specification :
1.H.264 High profile compression algorithm ideal for network NVR
2.Realtime live display up to 4 IP cameras
3.Pentaplex function:live,recording,playback,backup & remote access;
4.Support Dual-streams,to make mobile monitoring very easy,flexible for network transmission
5.Multiple control methods:IR remote controller,USB mouse and front panel press button
6.Smart video detection:motion detection,video blind,video loss
7.Smart camera settings:privacy masking,camera lock,color setting,and tittle display
8.Easy backup methods: USB devices,remote network and client software backup
9.Alarm triggering screen tips,buzzer,e-mail &FTP upload
10.Smart HDDs Management:non-working HDD hibernationg,HDD faulty alarm,Raid function
11.Support DHCP / PPPOE / FTP / DNS / DDNS / NTP / Email alarm / IP right management / IP search / network alarm center functions, support web client, standalone client and SDK..
12.Enable strong multi-way synchronization with max 1 channel playback, realize the zero-delay between playback channels
13. Support cloud(xmeye.net),no need to do router mapping, just 1 step go to internet with cloud technology
14.PoE NVR ,1PCS LAN Port,4PCS POE Ports
Camera Specifications:
1) Dual stream encoding(H.264/MJPEG)
2) Double core 32bit DSP(Hi3516C)
3) 1/2.7inch 2.0MP CMOS sensor, color:0.1lux/F1.2, b/w:0.01lux/F1.2
4) With IR-CUT
5) 25fps(Full real time)
6) 3.6mm lens
7) Multi-screen software and CMS
8) Image processing: auto exposure(AE), auto white balance(AWB), auto gain control(AGC)
9) Support motion detection, ONVIF 2.0
10) Metal shell
11) Support visit by smart phone
|
Model |
1080P |
|
System structure |
Embedded RTOS,dual-core 32bit DSP( Hi3516C ),pure hard compression ,watch dog |
|
Sensor |
2.0MP 1/2.7" SC2135 CMOS sensor color 0.1Lux’F1.2,black/white 0.01Lux’F1.2 |
|
Video compression |
H.264,support dual stream,AVI;0.1M~6Mpbs variable;1~30f/s variable |
|
Image output |
Main stream:1920*1080,1280*720 sub-stream: 704*576; |
|
Noise reduction |
Support 2D/3D |
|
lens |
3.6mm |
|
Storage |
Via PC/Mobile Phone/NVR With HDD |
|
Infrared light |
4pcs array IR leds |
|
Wide dynamic |
Support digital |
|
Network interface |
1*RJ45 10/100M adaptive Ethernet port;support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP etc |
|
Singal interface |
One photo resistance interface,one IR-CUT interface ,support photo resistance signal and IR-CUT links to IR |
|
Auto iris |
No |
|
SD Card |
Unsupport |
|
Reliability |
Comprehensive lightning protection, in line with national and international standards; 7 * 24 hours 65’C high temperature stable and reliable testing (including mounted machine testing) |
|
Other function |
Outdoor waterproof |
|
ONVIF |
Support |
|
Mobile monitoring |
Support multiple mobile monitoring(iOS,Android) |
|
Power |
DC12V/2A input, power consumption:≤3W |
|
Dimension |
10.1*6.8*6cm |
|
Housing material |
Metall |
Package Included:
