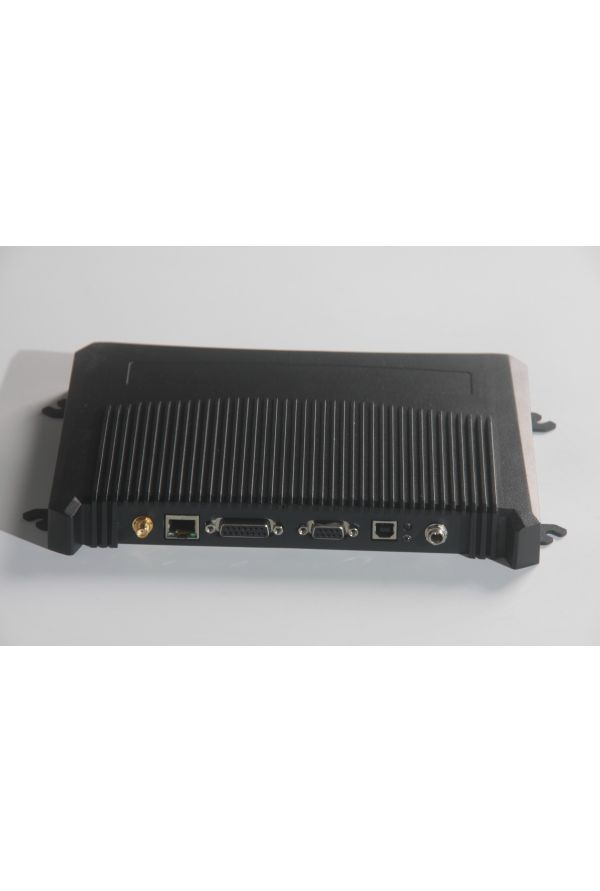

RFID UHF High Performance 4-Channel Fixed Reader Station
UHF High Performance Fixed Reader HY407 is designed upon fully self-intellectual property. Based on proprietary efficient digital signal processing algorithm, it supports fast tag read/write operation with high identification rate. RRU2882LITE can be widely applied in many RFID application systems such as logistics, access control, anti-counterfeit and industrial production process control system.
GENERAL DESCRIPTION
UHF High Performance Fixed Reader HY407 is designed upon fully self-intellectual property. Based on proprietary efficient digital signal processing algorithm, it supports fast tag read/write operation with high identification rate. RRU2882LITE can be widely applied in many RFID application systems such as logistics, access control, anti-counterfeit and industrial production process control system.
FEATURES
- Self-intellectual property;
- 840~960MHz frequency band (frequency customization optional);
- Based onImpinj E710 high performance RF engine, excellent multi-tag anti-collision operation, fully support EPC CLASS1 G2 \ ISO18000-6B protocol tags
- FHSS or Fix Frequency transmission, support RSSI, Maximum inventory speed over 700pcs;
- RF output power up to 33dbm(adjustable);
- Support 4 TNCantenna port with antenna auto-tuning and failure-detection;
- Support answer and real-time-inventory work mode;
- Tag buffer: 1000pcs@96bitsEPC;
- Support EPC and TID anti-collision mode
- Low power dissipation with single +9 DC power supply, POE (Power over Ethernet) is optional;
- Support RS232, USB(Slave), RJ45 (TCP/IP)interface;
- Provide DLL and Demonstration Software Source code to facilitate further development;
High reliability design, meet the requirements of harsh working environment.
| Product Name | RFID UHF High Performance 4-Channel Fixed Reader Station |
|---|---|
| SKU | HY407 |
| Weight | 2.000000 |
| Customizable | 是 |
| With Built-in Battery | 否 |
| Warranty | 1 Year Warranty |
| Country Specific | Universal |
| selling_potential | 3 |
| Minimum Order Quantity | 否 |
| Description | GENERAL DESCRIPTION UHF High Performance Fixed Reader HY407 is designed upon fully self-intellectual property. Based on proprietary efficient digital signal processing algorithm, it supports fast tag read/write operation with high identification rate. RRU2882LITE can be widely applied in many RFID application systems such as logistics, access control, anti-counterfeit and industrial production process control system.
FEATURES
High reliability design, meet the requirements of harsh working environment. |
| Condition | New |
